BendPak HD-9XW 9,000 Lb. High-Rise Four-Post Lift | ALI Certified | Extra-Wide & Extra-Tall Storage Solution
$ 4,546
$ 6,495
BendPak HD-9XW: The Gold Standard for High-Rise Storage

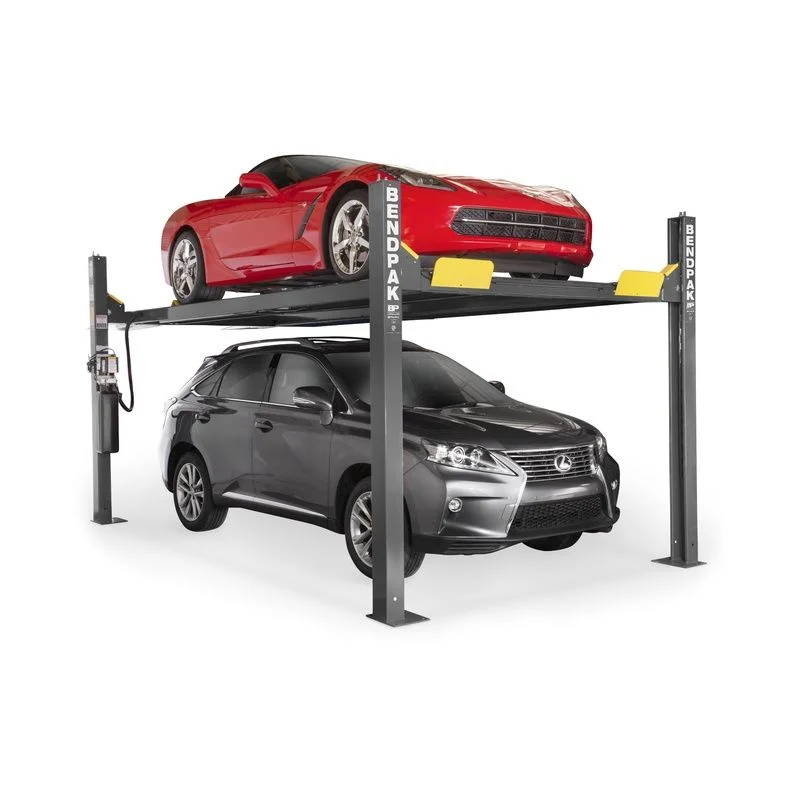

Do you have the ceiling height to dream big? The BendPak HD-9XW is designed specifically for garages with vertical space to spare. With **82 inches of rise**, tall mechanics can work comfortably without hunching, and high-clearance SUVs can be parked underneath with ease. This "X-Wide" model ensures that even wide-body trucks pass through the columns without a scratch on the mirrors.
Elite Engineering & Safety
- 🏆 ALI Certified Security: The HD-9XW is certified according to ANSI/ALI ALCTV-2011 standards. This is the highest safety rating a lift can achieve—period.

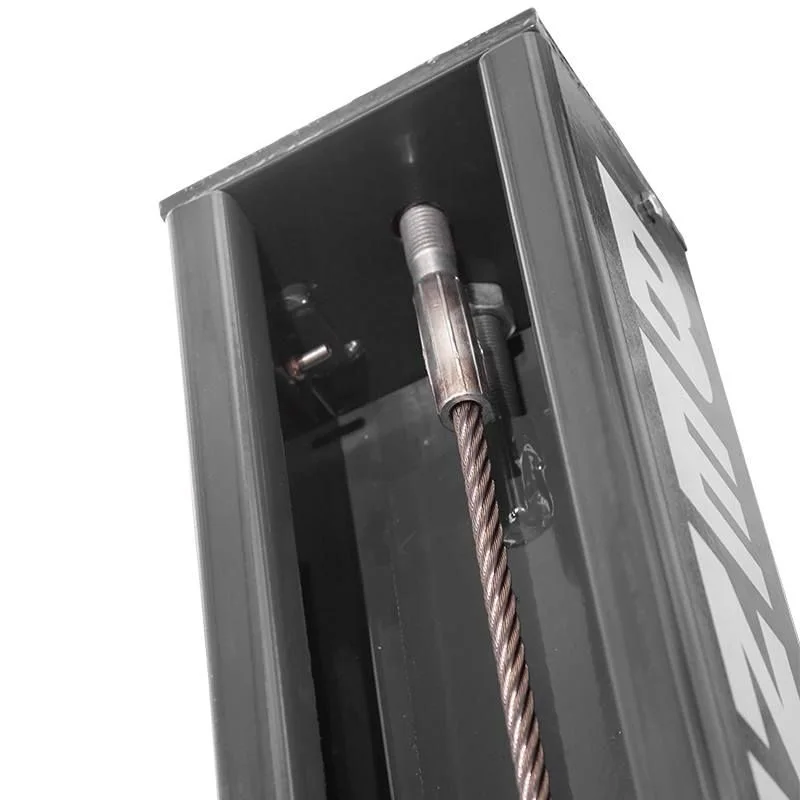

- 💪 Overbuilt Cable System: Features four superior-grade stainless steel lifting cables. Each individual cable is rated at 14,000 lbs, giving the system a safety factor of over 640%.

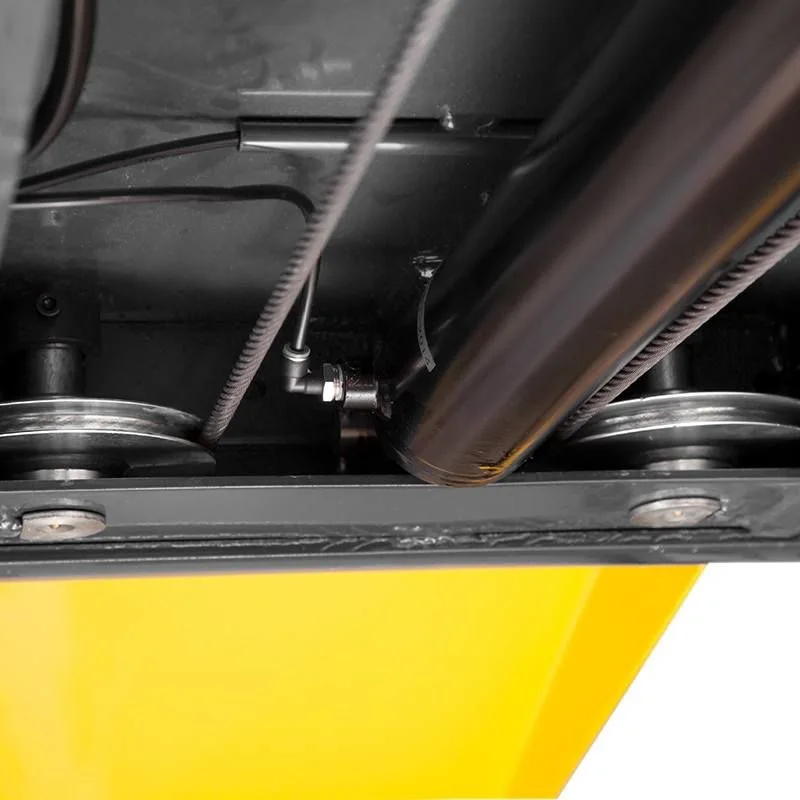

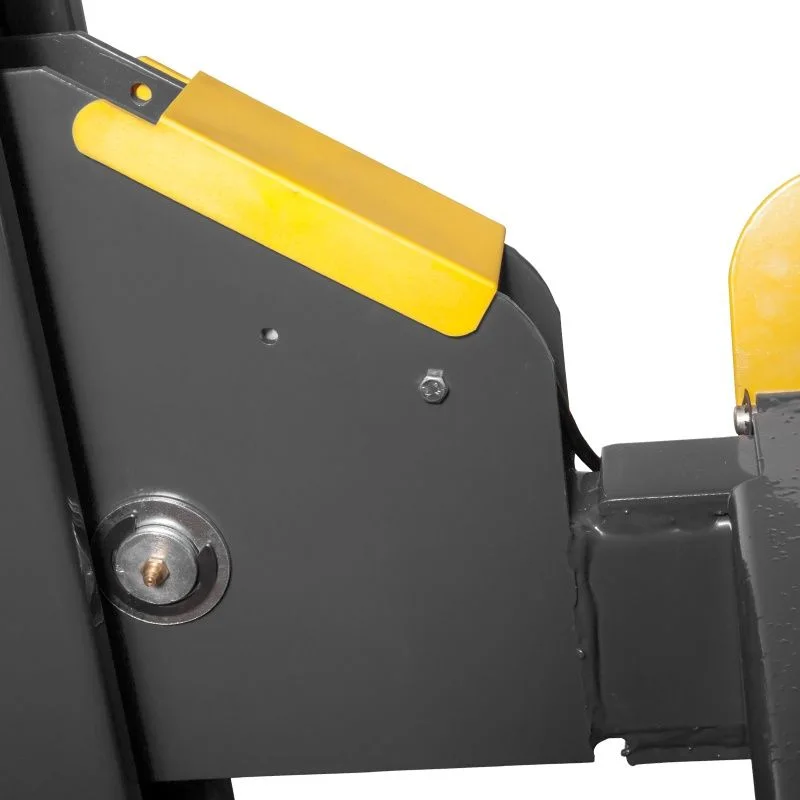

- ⚙️ Dual-Hub Sheaves: Expensive to make but vital for longevity; these sheaves prevent axle and cable burnout, ensuring your lift performs reliably for decades, not just years.

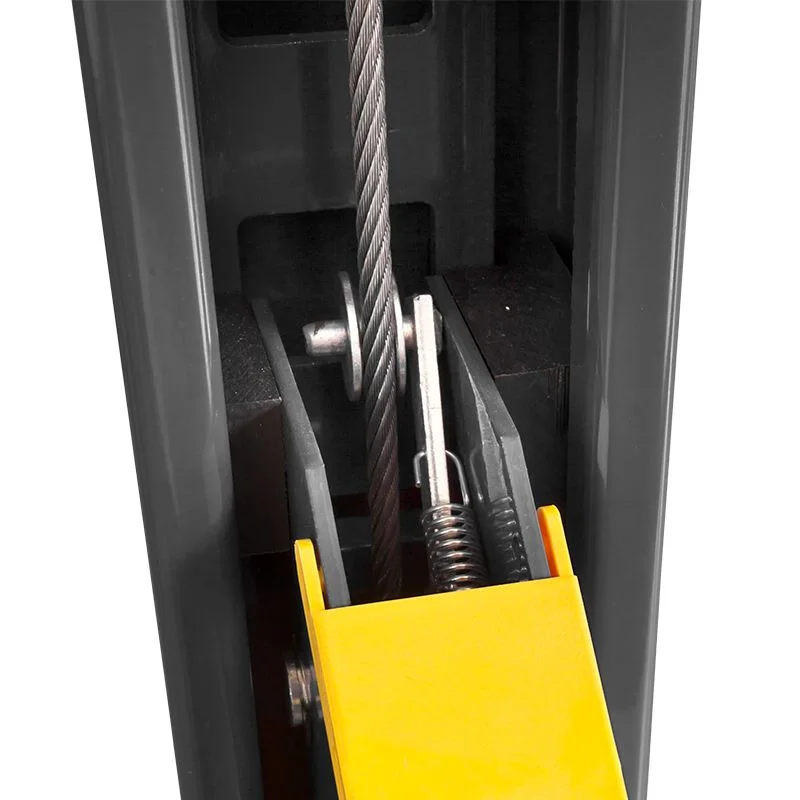

- 🛡️ Advanced Locking: 15 locking positions with a push-button pneumatic safety release and independent backup slack-cable latches for fail-safe operation.
Technical Specifications
FeatureImperialMetric
Lifting Capacity | 9,000 lbs. | 4,082 kg |
Max. Rise (Height) | 82" | 2,083 mm |
Overall Length (w/ Ramps) | 224" | 5,690 mm |
Drive-Thru Clearance | 86.5" | 2,197 mm |
Width Between Columns | 100.25" | 2,546 mm |
Motor | 220 VAC / 60 Hz | 220 VAC |
Shipping Weight | 1,802 lbs. | 817 kg |
Shipping, Handling & Exclusive Warranty
Factory-Direct Logistics: This unit is shipped directly from BendPak’s facility to maintain Incredible Value. Expected delivery is 14-24 days. Orders are processed with a 4-5 business day handling time.
Exclusive autoliftsupplyusa Warranty:
- 5-Year Structural Warranty: Covers all major steel components and runways.
- 2-Year Hydraulic Warranty: Covers the power unit and hydraulic system.
Note : Enjoy nationwide doorstep delivery and complimentary professional installation. Our certified team manages the entire process from delivery to final setup — ensuring your equipment is fully installed, tested, and ready to use.
