AMGO BP-12 12,000 Lb. Heavy-Duty Two-Post Lift | Base-Plate Design for Low Ceilings | Three-Stage Arm Versatility
$ 3,612
$ 5,160

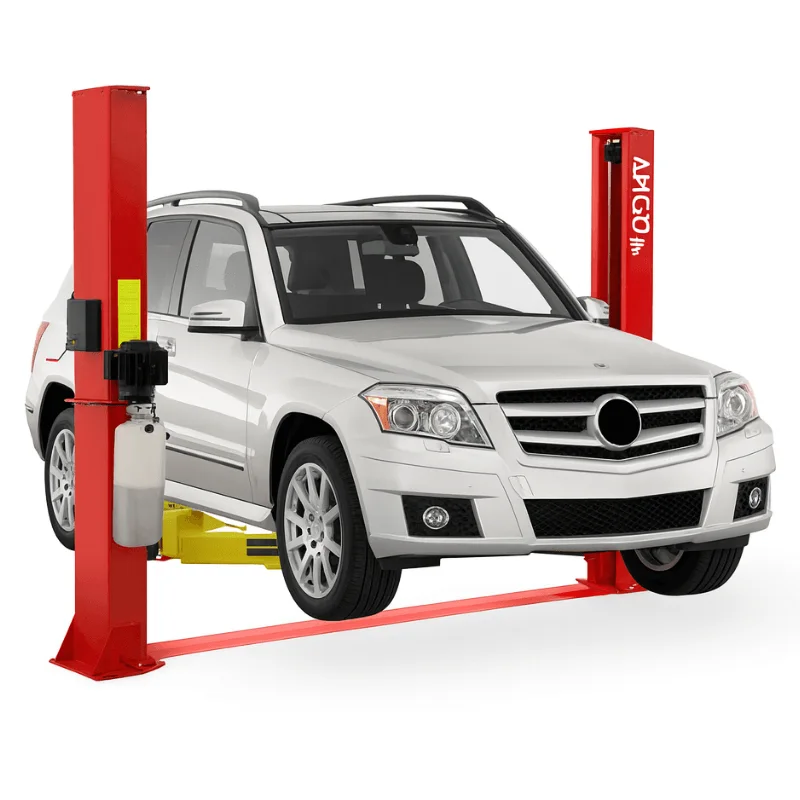

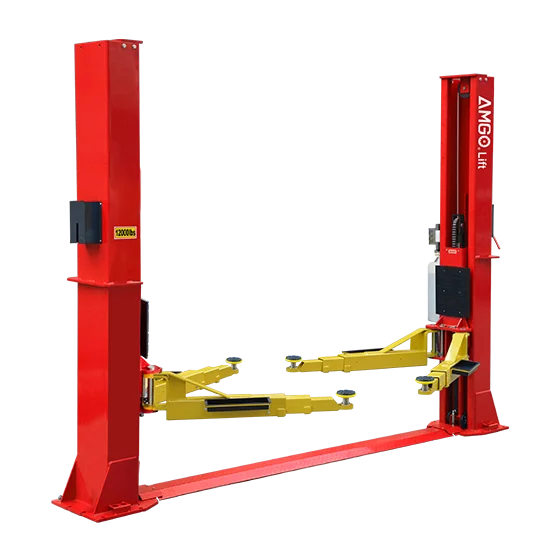

AMGO BP-12: Heavy-Duty Power, Low-Profile Footprint
Don't let low ceilings limit your shop's potential. The AMGO BP-12 features a rugged base-plate design that keeps all synchronization cables and hydraulic lines protected on the floor, allowing it to stand at a compact 122.5" overall height. Despite its low profile, it packs a massive 12,000 lb. lifting capacity, making it perfect for servicing heavy-duty trucks, vans, and SUVs in any workspace.
Versatility & Professional Safety

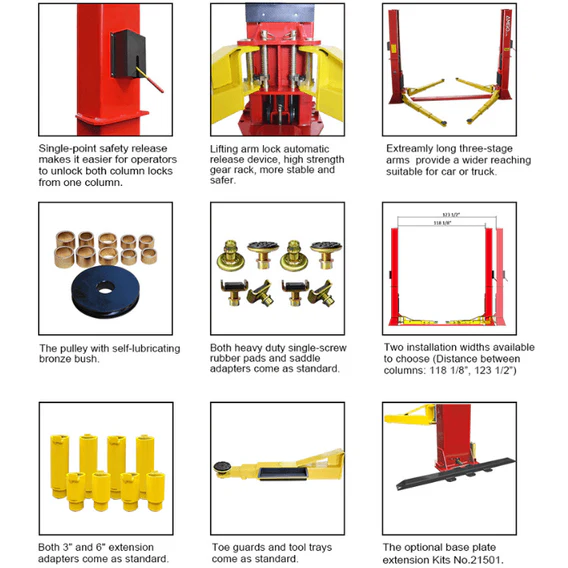

- 🚀 Four Three-Stage Arms: Unlike standard lifts, the BP-12 uses four 3-stage arms to reach more lifting points, accommodating a wider variety of wheelbases and vehicle widths with ease.
- 📐 Adjustable Width Columns: During installation, you can choose between two width settings (118 1/8" or 123 1/2") to customize the drive-thru clearance and fit your bay's specific dimensions.

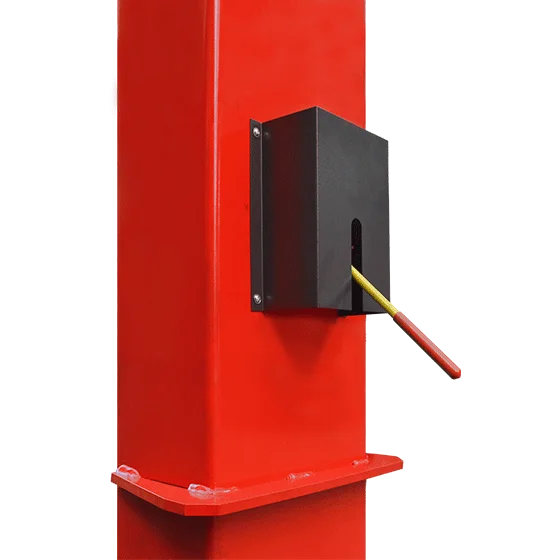

- 🛡️ Single-Point Safety Release: Improve shop workflow with a one-hand release system that unlocks both columns simultaneously. Features a dual-locking system for maximum technician safety.
- 🛠️ Clutter-Free Workspace: Includes detachable foot guards and tool trays to keep your bay organized and safe from tripping hazards.

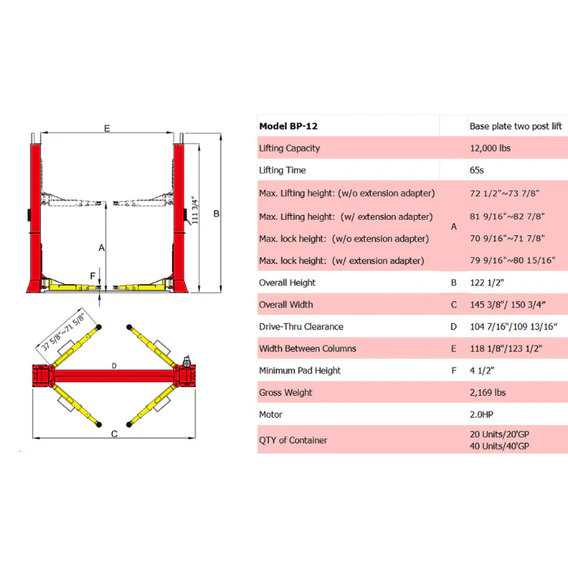

Technical Specifications
FeatureImperialMetric
Lifting Capacity | 12,000 lbs. | 5,443 kg |
Overall Height | 122.5" | 3,112 mm |
Overall Width | 145 3/8" - 150 3/4" | 3,692 - 3,829 mm |
Max. Lifting Height | 81 7/8" (w/ adapters) | 2,080 mm |
Drive-Thru Clearance | 105 1/4" - 110 5/8" | 2,673 - 2,810 mm |
Motor Power | 2.0 HP / 220V | 2.0 HP / 220V |
Gross Weight | 2,169 lbs. | 984 kg |
Shipping, Handling & Industry-Leading Warranty
Factory-Direct Logistics: To maintain Incredible Value, this unit ships directly from the AMGO factory. Estimated delivery is 14-24 days. Orders are processed with a 4-5 business day handling time.
Exclusive autoliftsupplyusa Warranty:
- 5-Year Structural Warranty: Covers all major steel components.
- 3-Year Hydraulic Warranty: Covers the pump, cylinders, and hoses.
- 2-Year Electrical Warranty: Covers the motor and control components.
Note : Enjoy nationwide doorstep delivery and complimentary professional installation. Our certified team manages the entire process from delivery to final setup — ensuring your equipment is fully installed, tested, and ready to use.
